- Extends dual-band Wi-Fi across your home to eliminate Wi-Fi dead zones.

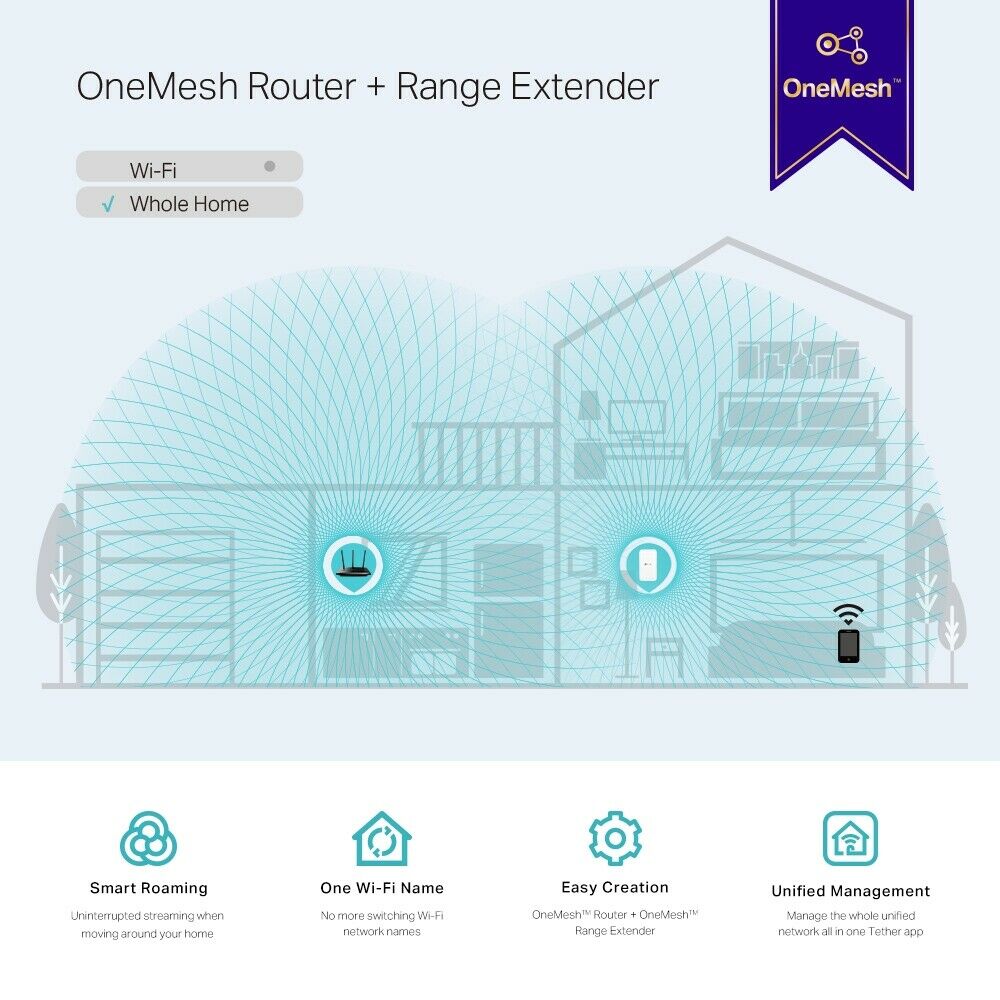

- Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.

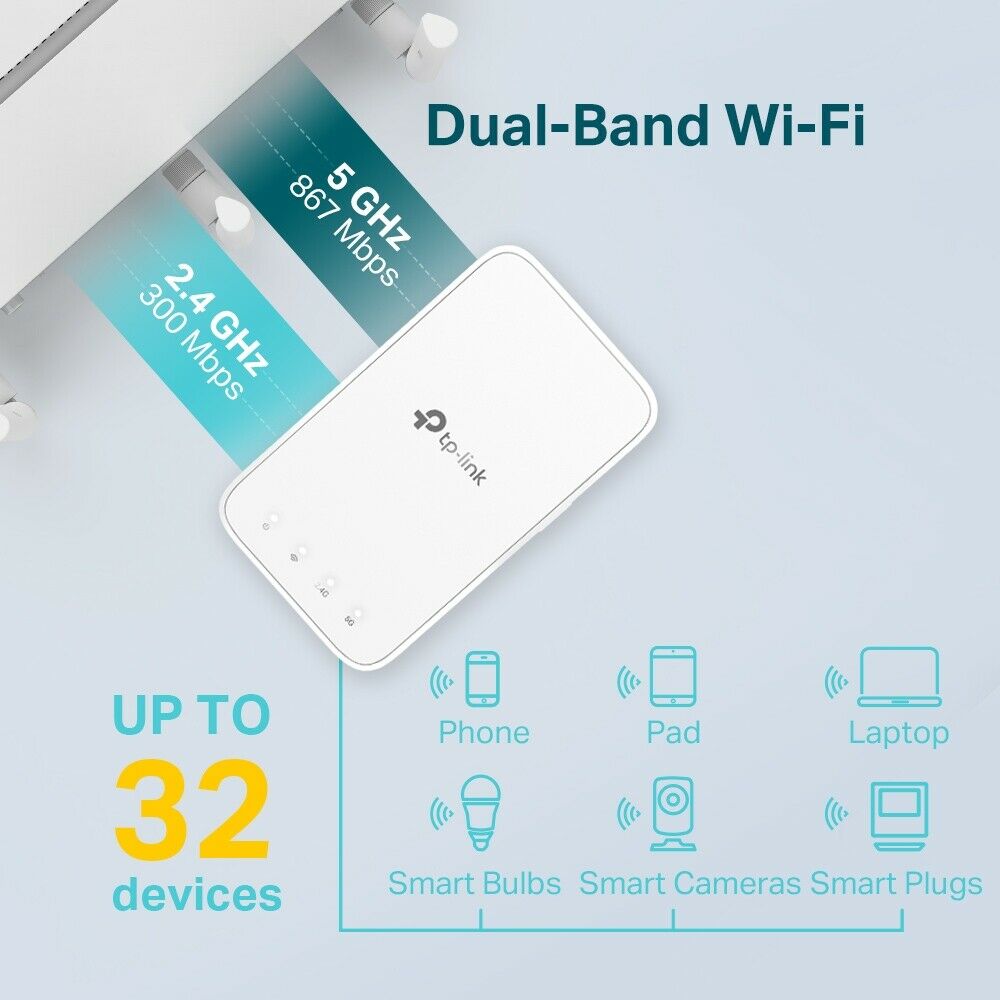

- Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps)*1for more stable wireless experience.
- Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.

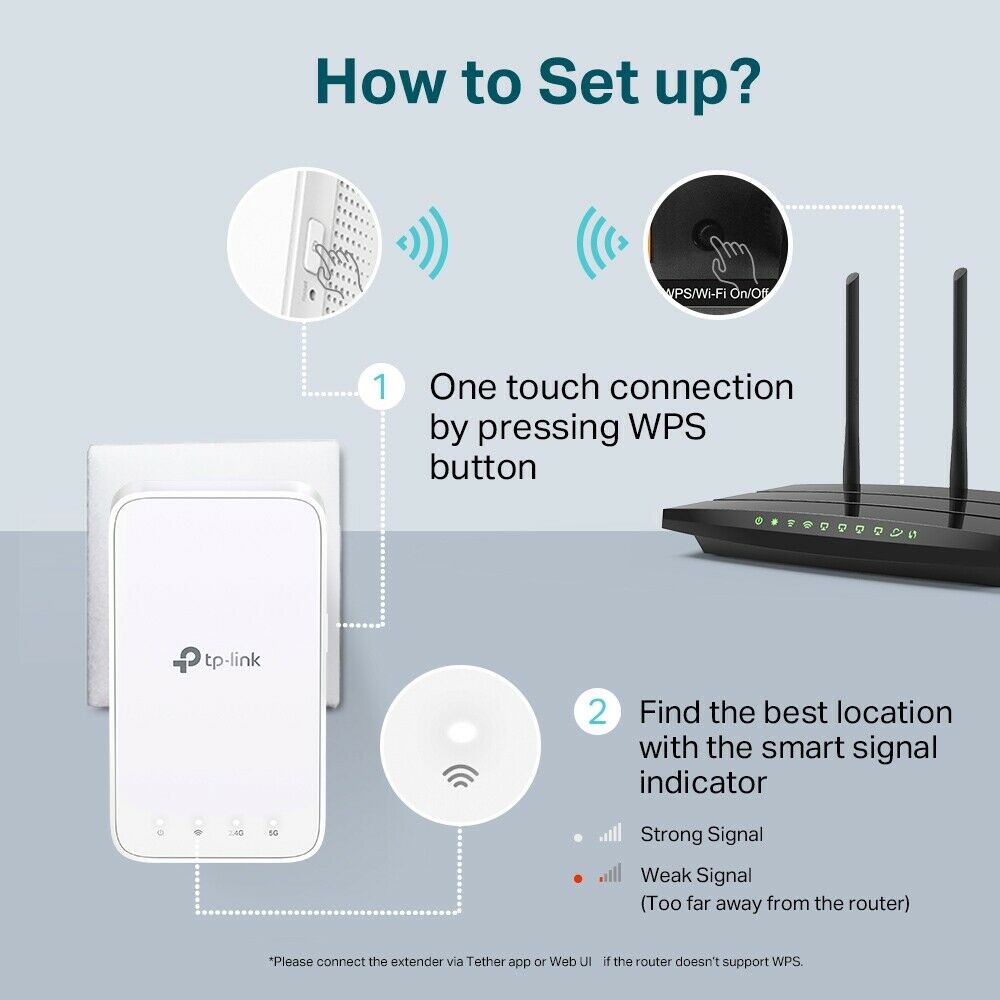

- Push the WPS button to easily set up a Mesh network you can uniformly manage from the Tether app or Web UI.
- Works with any Wi-Fi router or wireless access point.*2
*1. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
*2. The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.
*3. Smart Roaming is designed for devices that support the 802.11k/v standard.
Specifications
| Plug Type | AU |
|---|---|
| Standards and Protocols | IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b |
| Button | WPS Button, Reset Button |
| Power Consumption | 7.3W（max power consumption） |
| Dimensions ( W x D x H ) | 4.9 x 2.7 x 2.0 in (124 x 69 x 52 mm) |
| WIRELESS FEATURES | |
|---|---|
| Frequency | 2.4GHz & 5GHz(11ac) |
| Signal Rate | 5 GHz:Up to 867 Mbps 2.4 GHz:Up to 300 Mpbs |
| Reception Sensitivity | 5GHz： 11a 6Mbps:-91dBm@10% PER 11a 54Mbps: -74dBm@10% PER 11ac HT20 mcs8: -68dBm@10% PER 11ac HT40 mcs9: -63dBm@10% PER 11ac HT80 mcs9: -59dBm@10% PER 2.4GHz 11g 54M: -79dBm@10% PER 11n HT20 mcs7: -77dBm@10% PER 11n HT40 mcs7: -74dBm@10% PER |
| Wireless Modes | |
| Wireless Functions | Wireless Statistic Concurrent Mode boost both 2.4G/5G Wi-Fi band Access Control LED Control Domain Login Function |
| Wireless Security | 64/128-bit WEP WPA-PSK / WPA2-PSK |
| Transmission Power | <17dBm(2.4GHz) <17dBm(5GHz) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | ● AC1200 OneMesh Wi-Fi Range Extender RE300 ● Quick Installation Guide |
| Box Dimensions (W X D X H) | 6.2 x 4.0 x 3.5 in. (156.5 x 101.5 x 89 mm) |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
