Description

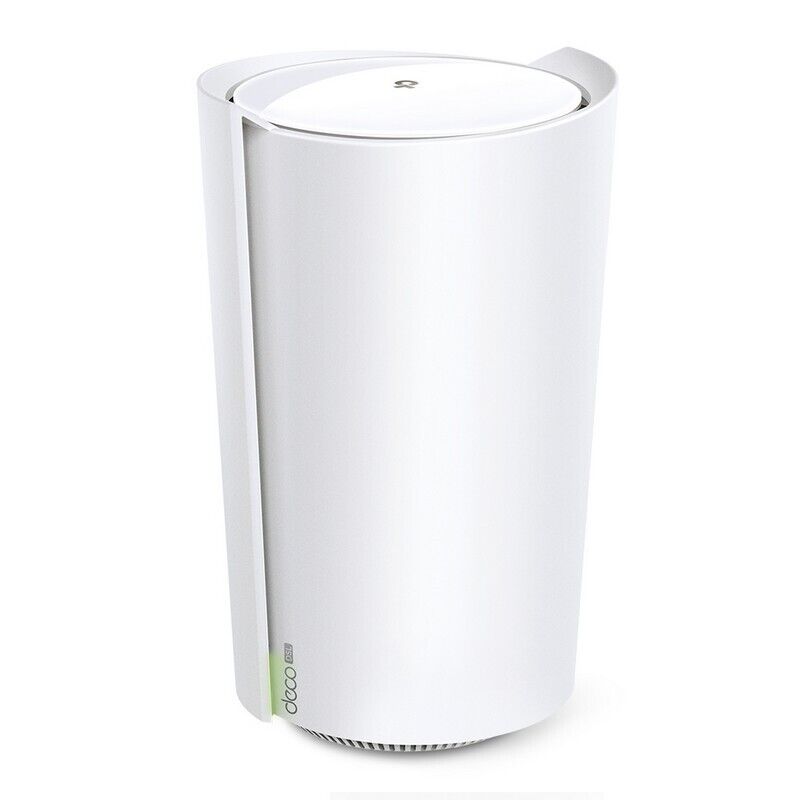

TP-Link Deco X73-DSL(1-pack) Deco X73-DSL AX5400 VDSL Whole Home Mesh Wi-Fi 6 System, 270sqm Coverage
TP-Link Deco X73-DSL AX5400 VDSL Whole Home Mesh Wi-Fi 6 System, 270sqm Coverage For 1-3 Bedroom Houses, Duak-Band, OFDMA, MU-MIMO, Beamforming
Features:
- VDSL Modem Router + Mesh WiFi - Save a modem, and gain a better WiFi experience
- Super VDSL2 Speed - Supports Profile 35b tech to deliver downstream up to 350 Mbps
- Superior WiFi 6 speeds up to 5.4 Gbps - 4804Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual-band WiFi with WiFi 6 technology
- Fully Gigabit Ethernet - 4x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed
- 3 RJ Ports: 1 DSL + 2 FXS
- TP-Link HomeShield - Real-time IoT and network protection, robust Parental Controls, and comprehensive reports
- True Seamless Roaming Mesh WiFi - Walk through your home and stay connected with the fastest possible speeds
Specifications:
HARDWARE FEATURES
VDSL2 Standards ITU G.993.2, Up to 35b profile (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
ADSL Standards Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.992.2(G.Lite)
ADSL2 Standards ITU-T G.992.3 (G.DMT.bis)
ADSL2+ Standards ITU-T G.992.5
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX5400
5 GHz: 4804 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 1-3 Bedroom Houses (1-pack)
3-5 Bedroom Houses (2-pack)
4-7+ Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
4x Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity High
Dual-Band
Distribute devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple WiFi 6 clients
4 Streams
More than enough bandwidth for connected devices
Working Modes DSL (only on Deco X73-DSL)
Router
Access Point
HARDWARE
Processor Deco X73-DSL: 1.0 GHz Dual-Core CPU
Deco X73: 1.0 GHz Quad-Core CPU
Ethernet Ports 4x Gigabit Ports Per Deco X73-DSL Unit
2x Gigabit Ports Per Deco X73 Unit
*All support WAN/LAN auto-sensing
Buttons RESET Button
Ports and Connections 1 USB 3.0 port
1 * DSL port (RJ-11)
2 * FXS port (RJ-11)
4 * Gigabit RJ45 auto-sensing WAN/LAN
Compatibility
VDSL 2 / ADSL 2+ / ADSL 2 / ADSL
SECURITY
WiFi Encryption WPA-Personal
WPA2-Personal
WPA3-Personal
Network Security SPI Firewall
Access Control
HomeShield Security§
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1x 5 GHz Guest Network
1x 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
WAN Types Dynamic IP
Static IP
PPPoE
L2TP
PPTP
*available on all units
PPPoA
IPoA
DS-Lite
*available on Deco X73-DSL
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
PHYSICAL
Dimensions (WxDxH) Deco X73-DSL:
5.1 x 4.8 x 8.3in
(130 x 123 x 210.5 mm)
Deco X73:
4.33 x 4.33 x 4.99 in
(110 x 110 x 114 mm)
Package Contents 1-pack
1 Deco X73-DSL Unit
1 RJ45 Ethernet Cable
2 RJ11 DSL Cables
1 External DSL Splitter
1 Power Adapter
1 Telephony Feature Guide
Quick Installation Guide
2-pack
1 Deco X73-DSL Unit + 1 Deco X73 Unit
1 RJ45 Ethernet Cable
2 RJ11 DSL Cables
1 External DSL Splitter
2 Power Adapters
1 Telephony Feature Guide
Quick Installation Guide
3-pack
1 Deco X73-DSL Unit + 2 Deco X73 Units
1 RJ45 Ethernet Cable
2 RJ11 DSL Cables
1 External DSL Splitter
3 Power Adapters
1 Telephony Feature Guide
Quick Installation Guide
OTHERS
Certification Deco X73-DSL:
CE, RoHS, RCM
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
TEST DATA
WiFi Transmission Power CE:
?20 dBm (2.4GHz)
?23 dBm (5GHz)
