Description
Specifications:

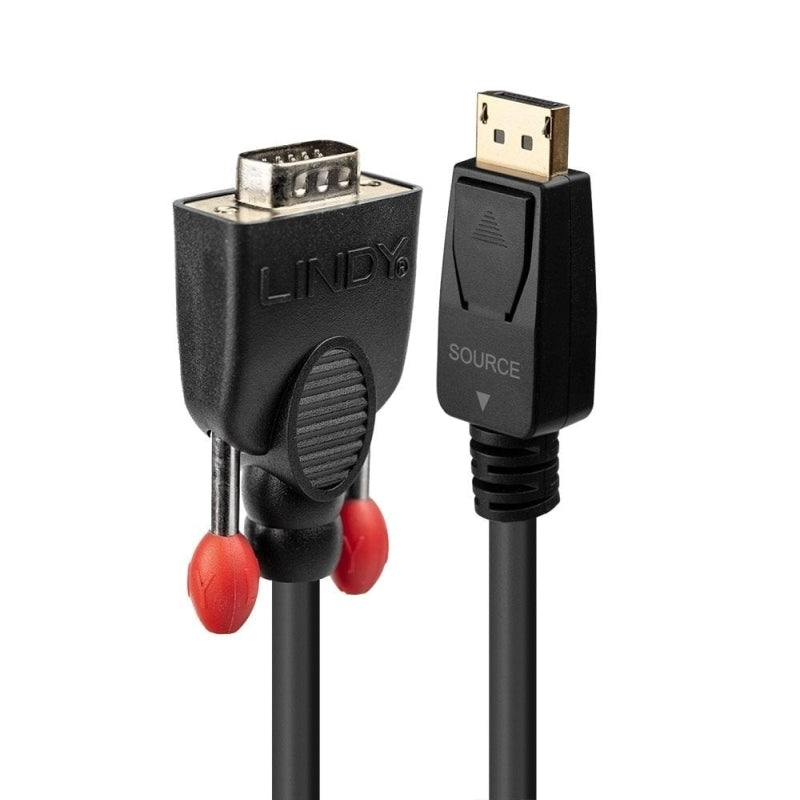

- Connector A: DisplayPort Male
- Connector B: VGA Male
- Connector Plating: Gold plated
- Pin Construction: Copper
- Pin Plating: Gold plated
- Standard: VGA | DisplayPort 1.1
- Supported Bandwidth: 1.65Gbps
- Maximum Resolution: 1920x1200@60Hz
- Nominal Attenuation:
- 100MHz-450MHz 2.44-5.099dB
- 450MHz-8100MHz 5.094-32.906dB
- Minimum Bend Radius: 60mm
- Certificated: CE | FCC | RoHS | REACH | UL
Features:
- Connects a DisplayPort equipped device to a VGA display or projector
- Supports resolutions up to 1920x1200@60Hz
- Supports video mirroring and extended desktop modes
- Male to male connections for a secure direct connection
- 2 year warranty
