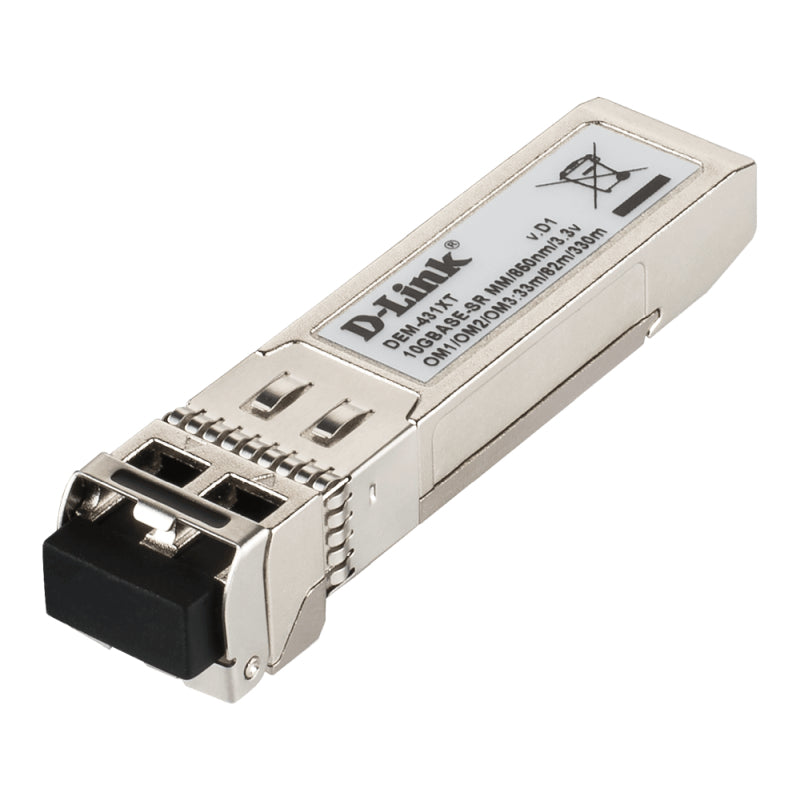

Description
Specifications:
- Standard Compliance: IEEE-802.3ae, 10GBASE-SR
- Form Factor Type: SFP+
- Fibre Channel FC-PI: Standard 1200-Mx-SN-I
- Fiber Media Support: Multi-Mode
- Distance Capacity: 62.5 ?m, 160 MHz-km: 26 m, 62.5 ?m, OM1 200 MHz-km: 33 m, 50 ?m, 400 MHz-km: 66 m, 50 ?m, OM2 500 MHz-km: 82 m, 50 ?m, OM3 2000 MHz-km: 300 m
- Hot Pluggable: Yes
- Compliant: MSA, RoHS
- Speed: 10 Gbps
- Connector: Duplex LC Connector
- Wavelength: 850 nm
- Output Optical Power (TX Optical Power): Max.: -1 dBm, Min.: -6.5 dBm
- Input Optical Power (RX Optical Power): Max.: -1 dBm, Min.: -11.1 dBm
- Sensitivity: -11.1 dBm
- Cable Type: Multi-mode 50/125 um or 62.5/125 um fibre
- Power: 3.3 V
- Heat Generated: 3.6 kJ/h
- MTBF (Hours): 3,960,000
- Operating Temperature: 0 to 70 C
- Storage Temperature: -40 to 85 C
- Operating Humidity: 5 to 85%
- Storage Humidity: 5 to 95%
- Dimensions: 14.8 x 56.5 x 11.85 mm
- Weight: 18 g
- Bail Latch Color: Beige
- EMI: CE, FCC, VCCI
- Safety: UL, TUV, CDRH
Features:
- Enhanced Small Form-Pluggable (SFP+) form factor
- Hot pluggable
- Support 10G Ethernet
- Feature Digital Diagnostics Monitoring (DDM)1
- RoHS Compliant
- Compliant with MSA (Multiple Source Agreement)
- Compliant with IEEE802.3ae and 802.3aq standards
